Stretch Film Machine

Stretch Film Machine, Stretch Film Machine, Stretch Film Machine, Stretch Film Machine, Stretch Film Machine,Stretch Film Machine,Stretch Film Machine,Stretch Film Machine, Stretch Film Machine[09-01-15 22:43:17]

This strech film machine set use all kinds of resin for producing LDPE and LLDPE strech film or casting film. The machine is can be single screw item and double screw items,either of which is equipped with hoppers to provide different material types, and cooling water system. The final production of the film consists of two faces, for double screw item, one side of film is adhesive and other side is normal, for the single, both side are adhesive. It is widely used for packing architecture material and hardware parts.

All data below are based on our previous successful experience, we can adjusted the specification according to your requirements.

The raw material can be LDPE, LLDPE, PP, EVA and more. And the max width can be 1000mm, 2000mm, 5000mm according to your requirements.

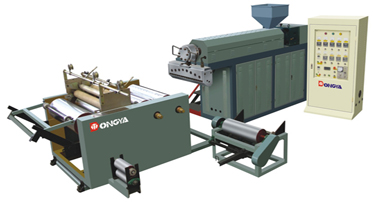

Slw-1000 single layer co-extrusion casting film machine

A whole set of production line with the advanced technique with the capability of 70Kg/H. The whole production line includes main machine, extruder reducer, cylinder screw, main motor, take-up motor, winding motor, inverter, heating unit, main electric unit.

Name	Slw-1000 single layer co-extrusion casting film machine
Material	LDPE, LLDPE ,HDPE, MLLDPE, PP, EVA, PEVA, etc
Max width	1000mm
Max speed	60M /min
Max output	70Kg /H
Installed capacity	50KW
Total weight	3T
Loading mode	automatic loader
Extruder	Ф 55*2
Main motor	screen changer(11KW) X2
Take-up motor	1.5KW
Winding unit	friction rewinder
Winding width	1000mm
Winding diameter	400mm
Mould width	1150mm
Thickness of die mouth	0.2mm -0.5mm
Thickness of film	0.01 -0.5mm

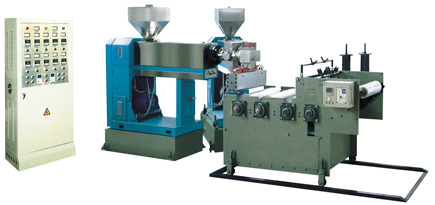

Slw-1000 double layer co-extrusion stretch film machine

The main components of double layer streth film machine are extruder reducer, cylinder screw, main motor, take-up motor, winding motor, inverter, heating unit, electric unit.

Name	Slw-1000 double layer co-extrusion casting film machine
Material	LDPE, LLDPE ,HDPE, MLLDPE, PP, EVA, PEVA, etc
Max width	1000mm
Max speed	50M /min
Max output	130Kg /H
Installed capacity	48KW
Total weight	3T
Loading mode	automatic loader
Extruder	Ф 60*2
Main motor	screen changer(11KW) X2
Take-up motor	0.75KW
Winding unit	friction rewinder
Winding width	1000mm
Winding diameter	300mm
Mould width	1150mm
Thickness of die mouth	0.2mm -0.5mm
Thickness of film	0.01mm-0.5mm

After saling stretch film machine, if necessary, We will send one or two engineers to set up and commissioning of the stretch film machine until it running in normal state. Druing the time your workers who will operate the stretch film machine will be trained.
