Sewage Vacuum Tanker Trailer

Sewage Vacuum Tanker Trailer, sewage vacuum tanker semi-trailer, China sewage vacuum tanker trailer for sale[09-03-30 15:44:37]

Sewage Vacuum Tanker Trailer
Featuring YHD9400GXM Sewage Tanker
The Sewage Vacuum Tanker Trailer are made by advanced techiniques from both Europe and China.
Unique pumping system and transporting system of sewage vaccum tanker trailer.
Key parts of the sewage vaccum tanker trailer have been equipped with high quality fitting purchased from those famous brands both at home and aboard.
Safe and reliable driving for sewage vaccum tanker trailer.
Easy maintenance and convenience for sewage vaccum tanker trailer




















CLIMA sewage vacuum tanker trailer is a newly developped vacuum truck. The tractor of it adopts Euro III, which has homologation manufactured by China Heavy Duty Group. The working theory of semi vacuum truck is using the vacuum pump to suck the air from tank to make minus pressure. Then the liquid garbage is pushed into tank by atmosperic pressure. The main purpose of truck is transporting the liquid garbage (sewage sludge, sewage, feces etc) or garbage collected by the small vacuum truck and suction excrement truck.

Name: Two axles vacuum sewage tank semi-trailer
Name: Three axles vacuum sewage tank semi-trailer
model: LHD9400GXE*O
Model:LHD9400GXW
Overall dimension: 91280 * 2250* 3588
Overall dimension: 11280 x 2480 x 3760
Capacity: 20m3
Capacity: 35m3
Axle: 13t x 2
Axle: 13t x 3
Paint: corrosion protected paint, color to be chosen
Vessel negative pressure: 100KPa, Positive pressure: 150KPa
Safety relief valve: 100MPs
Vacuum pump: made in Italy
Relief valve: made in Italy
Pressure gauge: available
Quick opening end closure
Fully opening rear door with pulley bet of security clamp with rubber seal
Loading hose: 6m with 3 inch and 4 inch coupling connection. Discharge hose: 6m with 4 inch coupling connection
Safety devices:
Auto air cut-cut valve protection
Pressure relief valve online
Level indicator
The vessel is fitted internally with transverse anti-surge baffles. The maximum volume contained between two partitions or surge plates is not be more than 1700 Gallons
Tool box with tools supplied with equipment along with lockable facility
Mudguard with flaps
Rear side bumper with reflector
Ladder and handrail
Rear sensor

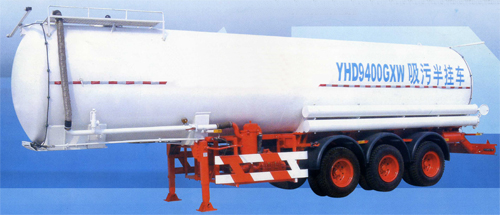

Sewage Vaccum Tanker Trailer Click for larger size
Sewage Vaccum Tanker Trailer Click for larger size

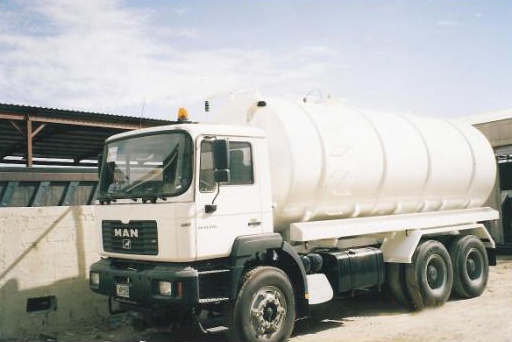

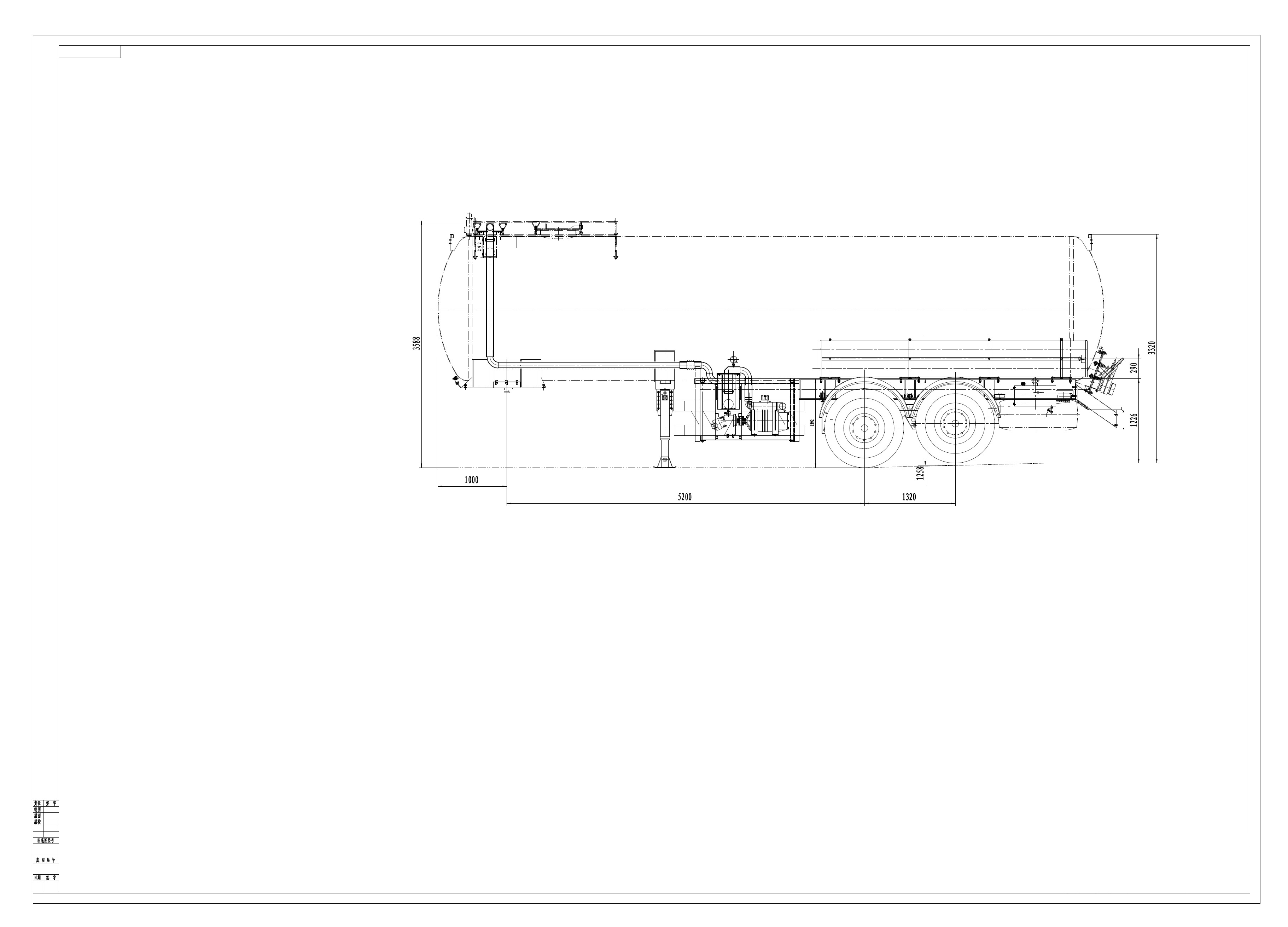

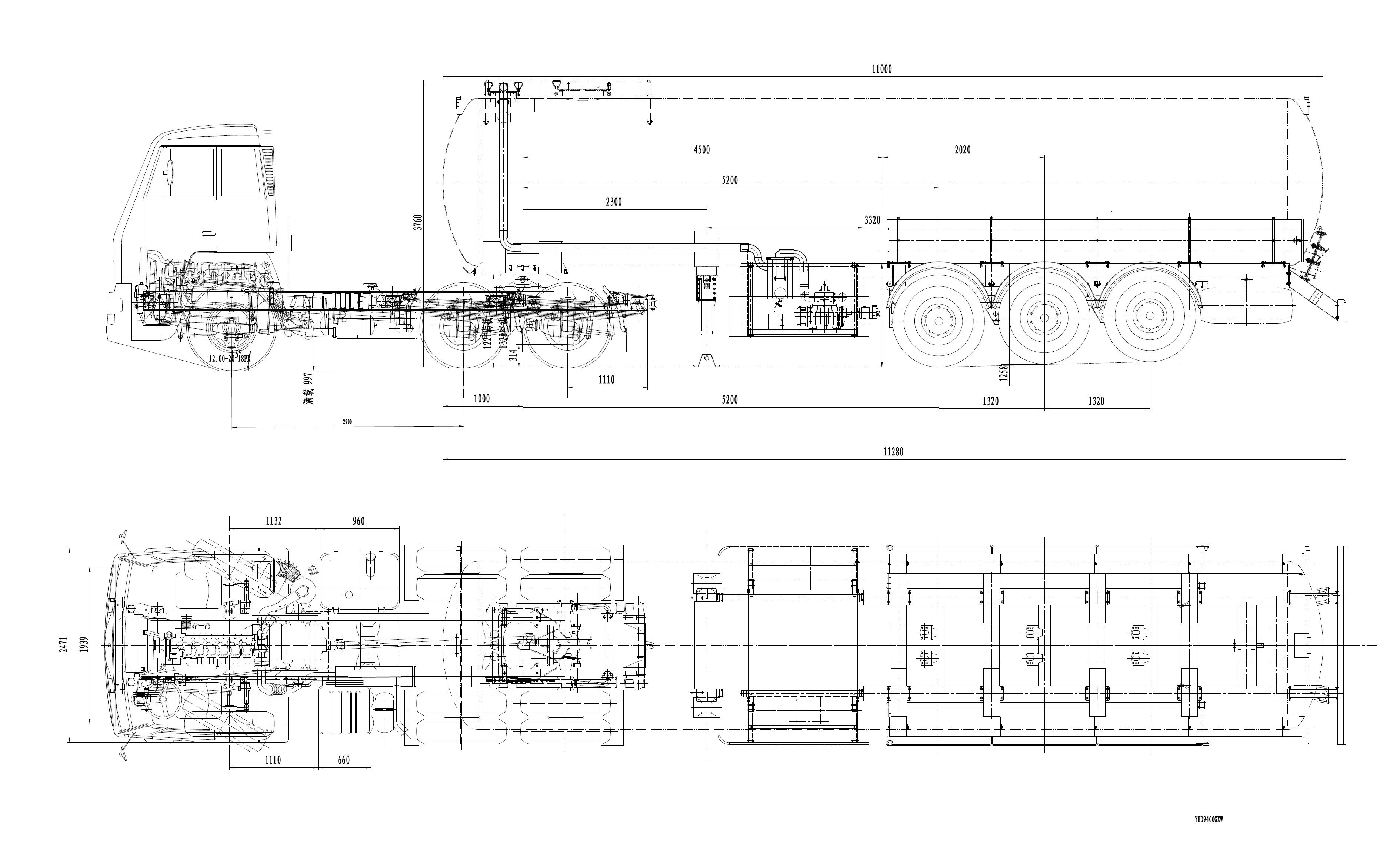

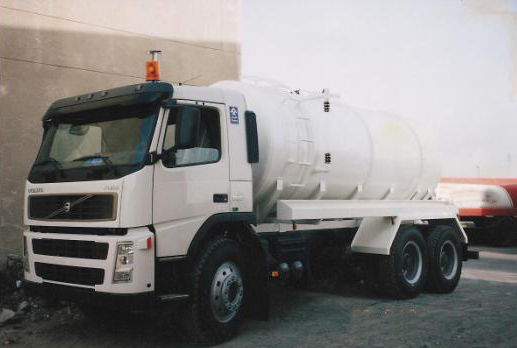

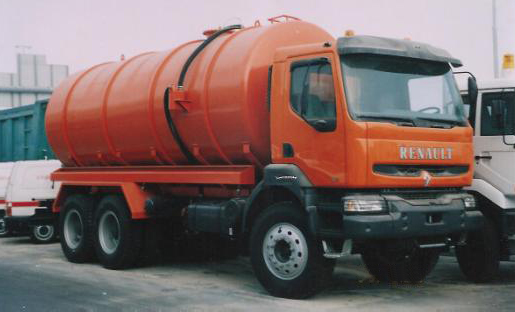

More Pictures About CLIMA Sewage Vacuum Tanker Trailer
