Tank Trailer

Tank trailer, tank semi-trailer, China tank trailer, tank semi-trailer for sale[09-03-30 15:36:21]

CLIMA Tank Trailer
Features of the Tank Trailer
The tank trailer are made by advanced techiniques from both Europe and China.
Key parts of the tank trailer have been equipped with quality fittings purchased from those famous brands both at home and aboard.
Safe and reliable driving .
Easy maintenance and convenience for the tank trailer.
Loading capacity is from 28L to 35L.





















The tank trailer is engaged for the stable, safe logistics of fuels transportation and storage. We supply both 2 axle, 3 axle tank trailer for customers. The vehicle for the mixer trailer can be provided by us or supplied in local.The self bearing tank is of maximum shape with lowest centre gravity. Each tank is equipped with aluminium ladder, foldable handrail, manhole, etc. The discharge method adopts gravity discharge. It's an ideal choice for the entrepreneur of the tank trailer.

Data below is the specification of our 3 axle tank trailer, it's for customers' reference, we can adjust the parameter according to clients' requirements.

Specification
Name three axle tank trailer
Overall dimension

11980*2500*3520mm

Gross vehicle weight

41000kg

Capacity

36000 L

Angle of departure

17°

Material of tank

Mild steel

Thickness of shell

6mm

Tank top accessories Aluminium ladder and foldable handrail, aluminium manhole
Electrical system

voltage 24V, 7pin socket

Discharge method

Gravity discharge

Running gear

3x13T double wheels

Braking system Double line air brakes Mechanical parking brake
Hydraulic system

U.S or Europe

Tool box

1set

Surface process

all steel surfaces are sandblasted.

Printing

base coating + surface painting. Color of customer's choice

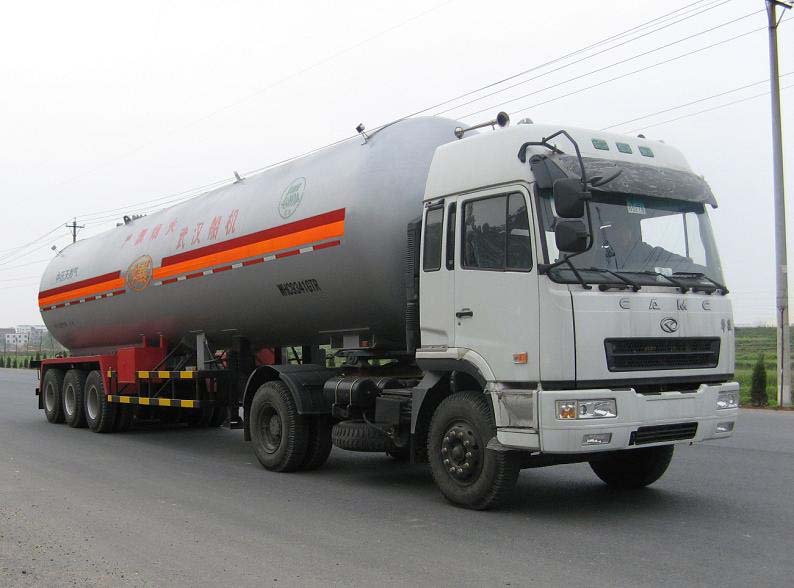

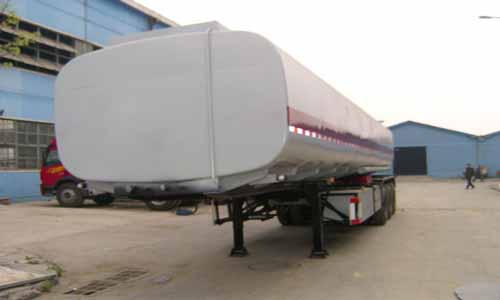

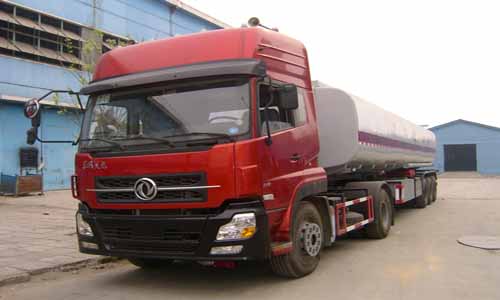

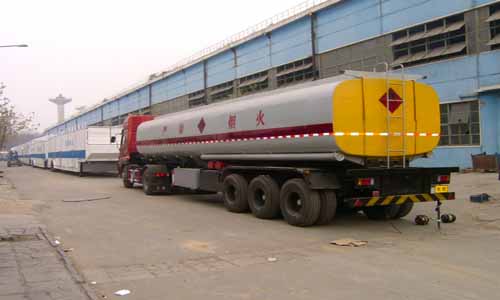

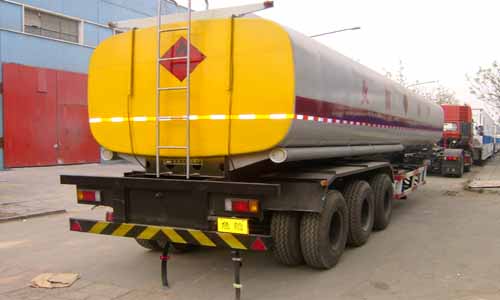

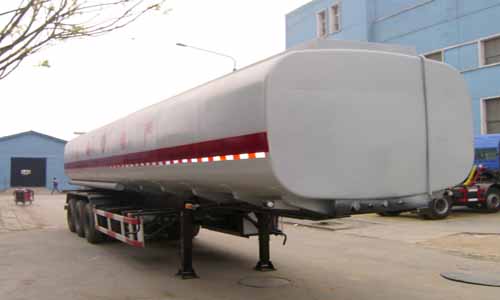

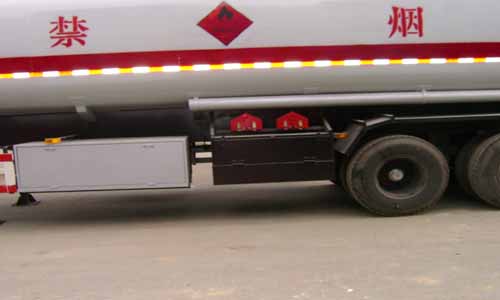

More Pictures About CLIMA Tank Trailer

`
