Flatbed Trailer

Flatbed trailer, flatbed semi-trailer, China flatbed semi-trailer, flatbed trailer for sale[09-03-30 14:13:27]

CLIMA Bulk Cement Trailer

Featuring BJQ9263-C-30T Flatbed trailer
	The flatbed trailer are made by advanced techiniques from both Europe and China.
	Key parts of the flatbed trailer have been equipped with high quality fitting purchased from those famous brands both at home and aboard.
	Safe and reliable driving for flatbed trailer
	Easy maintenance and convenience for flatbed trailer
	It could be loaded 40ft, two 20ft or one 20ft in the middle.

The flatbed trailer, or flat bed container trailer is mostly used for the transportation of sea container, as well as other loads such as woods, commodity, vehicles, wagons, etc. We can supply supply both 20 feet and 40 feet container flatbed semi-trailers. The trailer could be flatbed and skeletal, 2 axle and 3 axle according to different demands. The high quality material also perfects the function of products and the stability, safety and large capacity during transportation.

The belowing specification is based on our three axle flatbed trailer, it's for your reference, we can adjust the specification according to your needs.

Specification
Name	three axle flatbed trailer
Model	BJQ9263TDP-C-30T

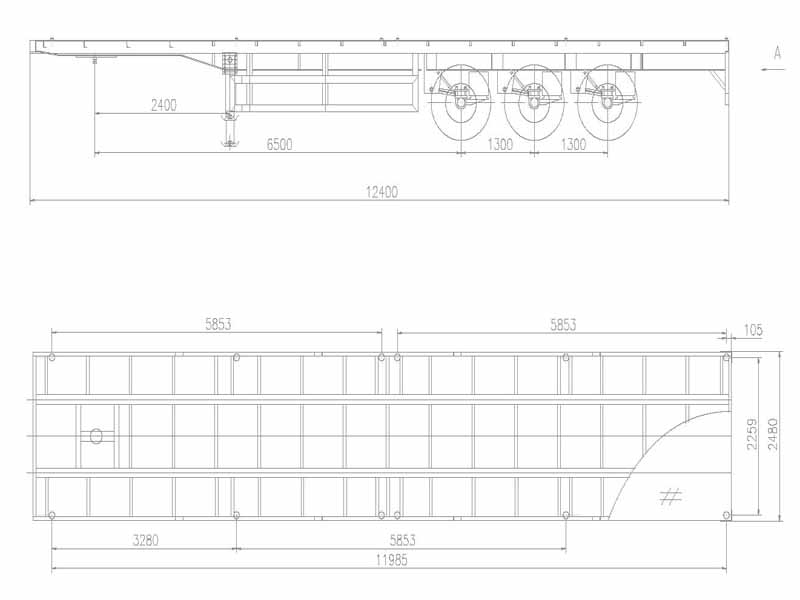

Overall dimension	12400 * 2450 * 1280mm
Ration load	30T
Axle	12T x 3
Suspension	90 168
Tyre	385/65 R22.5 6sets
Disc wheel	suitable with tyres
Deck flooring steel sheet	3mm
Kingpin	50#
Landing gear	25T
Electrical system	voltage 24V, 7pin socket
Tool box	1set
Water tank	1set
Surface process	all steel surfaces are sandblasted.
Printing	base coating + surface painting. Color of customer's choice

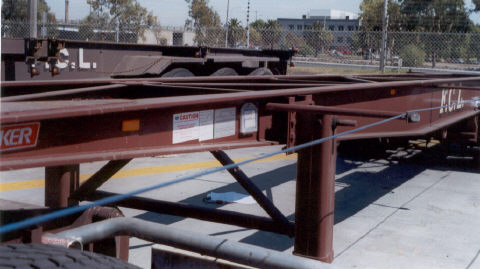

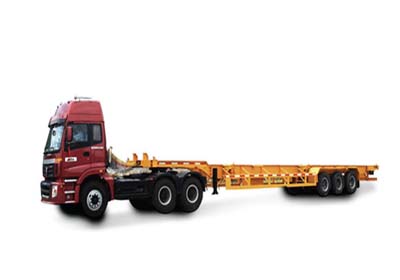

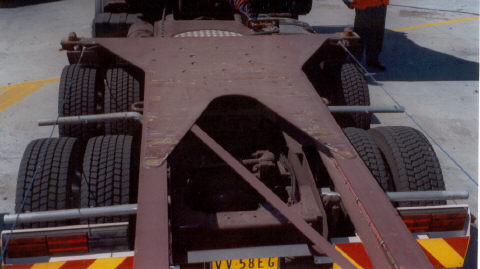

More Pictures About CLIMA Flatbed Trailer
