Film Laminating Machine

Film Laminating Machine, Film Laminating Machine,Film Laminating Machine, Film Laminating Machine, Film Laminating Machine, Film Laminating Machine, Film Laminating Machine, Film Laminating Machine, Film Laminating Machine[08-12-29 15:20:31]

Lamination machine is particularly designed to meet generally demand of film lamination jobs, examples like Poster, Greeting Cards, Book Titles, Card board cartons, Folding boxes etc. Features of the film lamination machine include provision for roll to roll lamination, extended feeding table, variable speed drive controls, film sliting attachement, wrinkle free lamination, etc.

Data below are based on our previous successful projects and are only for your reference, we can adjust the specification according to your requirement.

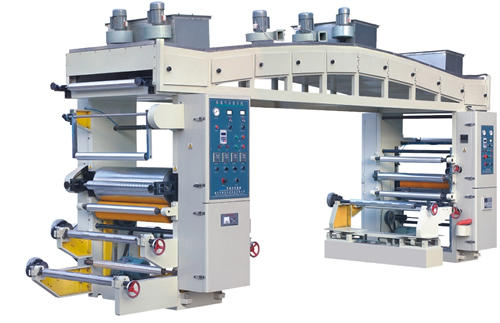

GFA Dry-type Film Laminating Machine
Application: This film laminating machine is suitable for laminating plastic-plastic, paper-plastic,
paper-paper and aluminum foils and other laminated materials in the packing industry.

Film Laminating Machine

DataType                                         GF-600A             GF-800A             GF-1000A
Max. Laminating Width                        600mm               800mm               1000mm
Max. Diameter of Material Roll               ф500mm              ф500mm              ф500mm
Layer Quantity of Laminated                  2（twolayer）       2（twolayer）        2（twolayer）
Laminating Speed                             5～90m/min          5～90m/min           5～90m/min
Max.Adjustable Temperature of Oven           90°C               90°C                90°C
Max. Adjustable Temperature of Hot Cylinder 80°C               80°C                80°C
Total Power                                  40Kw                52Kw                 65Kw
Weight of Machine                            5000kg              6000 kg              7000 kg
Overall Dimension                            6500×1600×3600mm 6500×1800×3600mm   6500×2000×3600mm

Performance and Features：

1.The glue coating and laminating motor adopts imported double variable frequency synchronous speed regulating to change the past shaft driving structure.
2.Smooth material feeding and synchronous linear speed ensure stretching of the base material.
3.The bridge-type three-segment drying tunnel heating increases temperature and the drying system makes laminating speed even higher.
4.Gluing and laminating adopt pneumatic pressing rollers and imported pneumatic components.
5.The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6 Unwinding and Rewinding adopts power tension control.
7.The silver lock temperature control system can control temperature at the best state.
8.First unwinding adopt automatic EPC system.
9. Second unwinding adopt duplex turret.

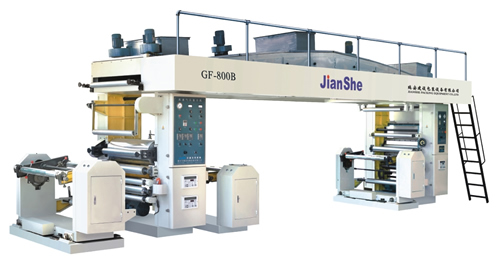

GFB High-speed Dry-type Film Laminating Machine
Application: This film laminating machine is suitable for laminating plastic-plastic, paper-plastic,
paper-paper and aluminum foils and other laminated materials in the packing industry.

Technical Data

Type                                              GF-600B            GF-800B               GF-1000B
Max. Laminating Width                             600mm              800mm                 1000mm
Max. Diameter of Material Roll                    ф500mm             ф500mm                ф500mm
Layer Quantity of Laminated                       2（twolayer）      2（twolayer）         2（twolayer）
Laminating Speed                                  5～90m/min         5～90m/min            5～90m/min
Max.Adjustable Temperature of Oven                90°C              90°C                 90°C
Max. Adjustable Temperature of Hot Cylinder       80°C              80°C                 80°C
Total Power                                       45.5Kw             57.5Kw                70.5Kw
Weight of Machine                                 5500kg             6500 kg               7500 kg
Overall Dimension                                 9000×1900×3000mm 9000×2100×3300mm    9000×2300×3000mm

Performance and Features：

1.The glue coating and laminating motor adopts imported double variable frequency synchronous speed regulating to change the past shaft driving structure.
2. Smooth material feeding and synchronous linear speed ensure stretching of the base material.
3.The bridge-type three-segment drying tunnel heating increases temperature and the drying system makes laminating speed even higher.
4. Gluing and laminating adopt pneumatic pressing rollers and imported pneumatic components.
5. The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6 Unwinding and Rewinding adopts power tension control.
7. The silver lock temperature control system can control temperature at the best state.
8. First unwinding adopt double position automatic turret with EPC system, non stop roller change.
9. Second unwinding adopt double position automatic turret with EPC system, non stop roller change.
10. Equipped with three section automatic tension control system

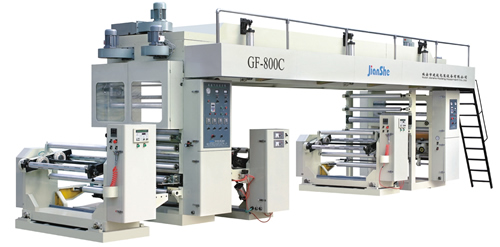

GFC Series High-speed Dry-type Film Laminating Machine
Application: This machine is suitable for the double-layer or multiple-layer lamination
of such roll film material as BOPP, PET, PVC, aluminum foil and paper, etc.

Technical Data

Type                                  GF-800C
Effective Laminating Width            800mm
Max. Width of Web                     850mm
Max. Laminating Speed                 100m/min
Max. Mechanical Speed                 130m/min
Diameter of Unwind/Rewind             ф600mm
Diameter of Roll Core                 ф76mm
Layer Quantity of Laminated           Two layers （Once）
Tension Control Range                 4～10kg （Perset）
Total Power                           60Kw
Heating Power of Oven                 50.4Kw （18×2.8）
Weight of Machine                     6500kg
Overall Dimension                     9300×2200×3000mm

Performance and Features：

1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control. 2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3.Imported tension controller for three section constant tension control.
4.Duplex turret type unwinder, pre-drive with manual web cutting, pre-tension for non-stop shaft exchange
5.First unwinder equipped with EPC system
6.Second unwinder equipped with EPC system
7.Duplex turret type rewinder, pre-drive with manual web cutting, pre-tension for non-stop shaft exchange
8.Movable doctor blade with pneumatic back pressure
9.Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
10.Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
11.Pre-heating before laminating, water cooling roller for laminated web.
12.Air inflatable Shaft for web loading/unloading

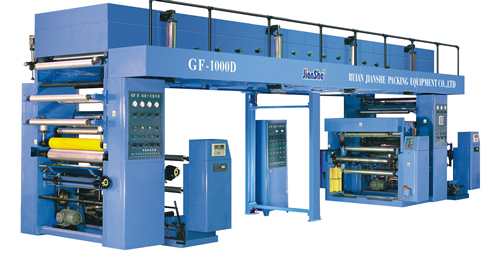

GFD series high speed Film laminating machine
Application: his machine is suitable for the double-layer or multiple-layer lamination
of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

Technical Data

Type                                 GFD-1000
Effective Laminating Width           1000mm
Max.Width of Web                     1050mm
Max. Laminating Speed                120m/min
Max. Mechanical Speed                150m/min
Diameter of Unwind/Rewind            ф600mm
Diameter of Roll Core                ф76mm
Layer Quantity of Laminated          Two Layer （Once）
Tension Control Range                4～10kg （Perset）
Total Power                          125Kw
Heating Power of Oven                96Kw （24×4）
Weight of Machine                    8000kg
Overall Dimension                    10570×2755×3230mm

Performance and Features：

1.Whole machine controlled by PLC controller, with high running reliability and stability.
2.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
3.Anilox roller with doctor blade for coating, various of anilox rollers available for different coating amount.
4.Imported tension controller for four section constant tension control.
5.Duplex turret type unwinder, pre-drive with pre-tension for non-stop shaft exchange
6.Duplex turret type rewinder, pre-drive with automatically web cutting, pre-tension for non-stop shaft exchange
7.Movable doctor blade with pneumatic back pressure
8.Four independent constant temperature section drying system with stainless infra heating tube and air blower,

adjustable inner circulated intake and exhaust device available to ensure the full dryness of web
9.Four independent constant temperature section drying system with stainless infra heating tube and air blower,

adjustable inner circulated intake and exhaust device available to ensure the full dryness of web
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Air inflatable Shaft for web loading/unloading

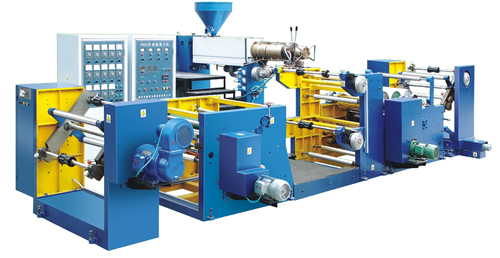

FMS Series Extrusion Laminating Machine
Application: This machine is suitable for laminating such composite materials as LDPE, PP ,EVA,
and EAA etc. with such base material sprinkling films as BOPP, PET, aluminum foil, roll paper
and cloth, etc. to make high-grade packing bags, so it suitable for being used in food and
medicine packing industry, etc.

Technical Data

Type                               FMS-600             FMS-800              FMS-1000
Max. Laminating Width              600mm               800mm                1000mm
Diameter of first unwinding Roll   ф500mm              ф500mm               ф500mm
Diameter of first unwinding Roll   ф450mm              ф450mm               ф450mm
Inside Diameter of Roll Core       ф76mm               ф76mm                ф76mm
Max. Laminating Speed              80m/min             80m/min               80m/min
Diameter of Screw                  ф45mm               ф65mm                ф90mm
Draw Ratio of Screw                28:1                28:1                  28:1
Weight of Machine                  10000kg             12000 kg              15000 kg
Overall Dimension                  9700×7000×2000mm 10000×7500×2300mm   10300×8000×2600mm

Performance and Features：

1.It adopts the side-pipe type with adjustable mould head.
2.Three-roller type sprinkling film device can ensure sprinkling film quality and long term high-speed operation.
3.The main motor of extrusion adopts imports variable frequency speed regulating.
4.The material rewinding and unwinding tension adopts magnetic powder brake and clutch control.
5.the system has perfect air and electricity combination, linkage operation and safety protection design.
6. First unwinder duplex turret type, for non-stop roll exchange
7. Second unwinder duplex turret type, for non-stop roll exchange
8. Rewinder: duplex turret type with torque motor, for non-stop roll exchange.
9. Trim cutting device
10. Automatic constant temperature system for extrusion section, the cooling blower will ensure the temperature within acceptable range.
11. Auto meter counter
12. Option: Automatic material feeding system.
