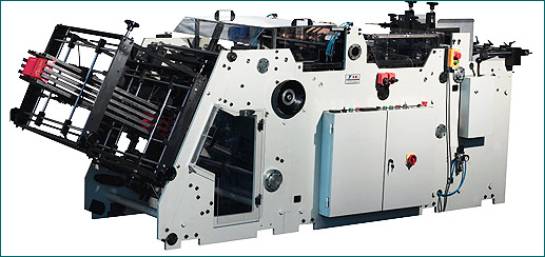

Paper meal box machine

Paper meal box making machine, hamburger box making machine, snack food making machine, fast food packaging machine[08-12-18 10:39:05]

Paper meal box making machine, hamburger box making machine, snack food making machine, fast food making machine

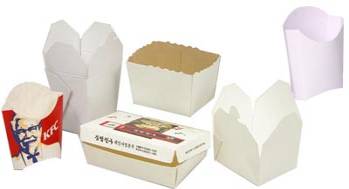

CLIMA is able to provide customers with meal box making machine, which can be engaged in producing paper meal box, paper meal dishes, hamburger box, fast food box, snack box and more. During the procedure, paper out unit transfers the pre-printed and cut cardboard from the paper shelf to feeding chains, and then go to shaping moulds. Between the procedures, cardboard has been glued, and the gluing position and quantity could be adjusted in processing not needed to be stopped. At last shaped cardboard will be moved to collector, calculated in preconcert quantity and marked symbol not needed to be stopped.

Data below are based on our previous successful projects, we can adjusted the specification according to your requirement.

Max box size: 95*95*35CM

Producing speed: The highest speed reaches up to 180 per minute
Raw materials: Material: 200-600g/

Raw materials: Material: 200-600g/ ㎡ cardboard, max thickness of Corrugated paper: 1.5.

Working principles:Paper out unit transfers the pre printed and cut cardboard from the paper shelf to feeding chains, and then go to shaping moulds. Between the procedures, cardboard has been glued, and the gluing position and quantity could be adjusted in processing not needed to be stopped. At last shaped cardboard will be moved to collector, calculated in preconcert quantity and marked symbol not needed to be stopped.

Fast Food Packaging Machine

最高工作速度 Max.working speed

10000 pcs/hour

适应纸张克量 Thickness of paper

40-100 g/m2

适应纸张幅面 Size of paper

Max:320*300 mm

Min: 90*90 mm

边折率 2-ply width

30-80 mm

电机功率 Motor power

5 KW

外形尺寸 Overall dimension(L*W*H)

5500 x 1000 x1300 mm

整机重量 Weight of machine

3500 KG

After saling Hamburger box ,Meal box, Food box making machine, if necessary, We will send one or two engineers to set up and commissioning of the Hamburger box, Meal box, Food box making machine until it running in normal state. During the time your workers who will operate the Hamburger box, Meal box, Food box making machine will be trained.
