Square Can Making Machine

Square Can Making Machine[09-01-10 23:18:14]

This square tin can making machine is a production line that can produce tinplate square cans having capacity of 1L to 4L, etc. It's widely used in the areas of petro-chemical, light and food processing industry and etc. It provides convenience for package, preserving, transporting and the using of all kinds of high grade lubrication oil, paint and cooking oil and etc.

The data below are based on our previous successful projects and are only for your reference, we can change the parameter according to your requirements.

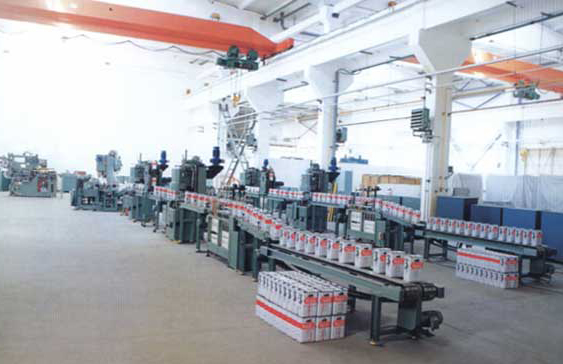

Production line in working

CLIMA automatic square can production line consists of resistance welding machine, squaring machine, flanger, two cappers, leakage testing machine and nine sets of conveying apparatuses.

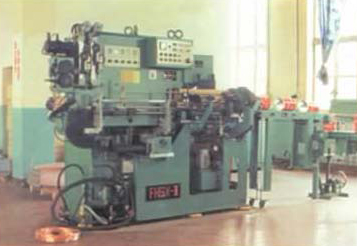

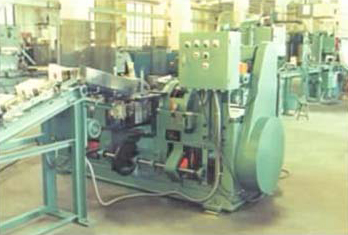

Automatic resistance welding machine

This automatic resistance welding machine for square tin can uses high frequency resistance welding to weld tinplate into a round canbody for producing square can. It consists of feeder, flxer, rounding station, welding station and automatic control system. It is easy to operate and reliable to work.

Production capacity	20-50 can/min
Sheet thickness	0.23-0.30mm
Canbody diameter	99-200mm
Canbody height	80-300mm
Overtap welded seam	0.8mm
Welded seam height	>15 time of sheet thickness
Total power	25kw, 380V±10%， 3-phase
Air pressure	0.8MPa
Compressed-air consumption	30m3/h
Cooling water consumption	12L/min

Horizontal squaring machine

This is a full-automatic canbody expanding machine, which forms a round canbody welded by the welding machine into a flat square or other shape one. It consistes of the host squaring machine, hydraulic expanding die and hydraulic oil pump. It has high productivity and low noise. It acts flexibly and is simple to operate. Production rate can be steplessly regulated.

Production capacity	20-50 can/min
Sheet thickness	0.23-0.28mm
Canbody diameter	100-180mm
Canbody height	150-300mm
Total power	11kw, 380V±10%，50Hz, 3-phase
Pump oil pressure	11MPa

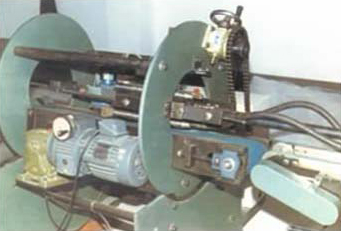

Flanger

It is an automatic flanging machine, which can flange the upper and lower ends of the flat square canbody expanded by the squaring machine. It consists of machine body, right and lefr pallets, conveying apparatus and stepless speed variator. It runs smoothly, nimbly and with high accuracy of positioning. It works safely and reliably.

Production capacity	20-25 can/min
Canbody sheet thickness	0.23-0.28mm
Product size	168.5(L)105.5(W)260(H)
Total power	2.2kw, 380V±10%，3-phase

Capper

This is a machine which can firmly secure and press the peripheries of the canbody and make the bottom of cap (tinplate) flanged. It has a sealing-head and four rolling wheels. It consists of machine body, bottom pallet, canbody conveying station and head sealing station, etc. This machine has good rigidity and high seaking quality. It has emergency brake which acts when unexpected breakdown happens.

Production capacity	20-25 can/min
Product size	168.5(L)105.5(W)260(H)
Total power	1.5kw, 380V±10%，3-phase

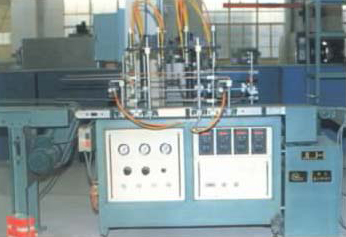

Leakage testing machine

After manufacturing the square can, blowhole of tinplate weld breakdown and rolling quality of can bottom and cap should be inspected. This machine consists of testing chest, transmitting apparatus, testing head and electrical and pneumatic control system, etc. The principle of this machine is pneumatical differential pressure testing. It has qualified product counting and non-qualified product rejecting functions.

Production capacity	20-50 can/min
Product size	168.5(L)105.5(W)260(H)
Total power	0.55kw, 380V±10%， 3-phase
Air pressure	0.6MPa
Compressed-air consumption	10m3/h

Technical data of all production line

Recommended product size	168.5mm105.5mm260mm
Production capacity	20-25 can/min
Total power	47kw, 380V, 50Hz, 3-phases
Air pressure	1MPa
Compressed air consumption	65m3/h
Cooling water consumption	12L/min
Pump oil pressure	11MPa
Area occupied	6*30m2
Total weight	approx 25t

After saling Square tin making machine, if necessary, We will send one or two engineers to set up and commissioning of the Square tin making machine until it running in normal state. Druing the time your workers who will operate the Square tin making machine will be trained.
