Crown Cap Machinery
The crown cap machine is an automatic double-acting eccentric press for the production of crown caps, it is equipped with a 15-punch die and produces more than 110.000 crown caps per hour. The working capacity and specification can be adjusted according to your requirements. The crown cap machien can use tin plates with various sized, for the production of standard crown caps. The output for each plate is also various.It can produce up-down caps of electric cell or other caps.
The data and production line configuration below are based on our previous successful projects, we can adjust the specification according to your requirements.
Automatic Crown Cap Machinery
1.Main machine

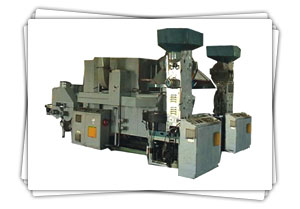

PTC 110 AUTOMATICCROWN CAP PUNCHING MACHINE Main technical data Number of die punches:15 Frequency of slider travel:130strokes/min Productivity:110000pcs/hour Applicable thickness of strip tin sheet:0.26mm Consumption of compressed air:1.3cubic metre/min Overall dimensions:3530*1960*2412mm Net Weight:5000kg PTC110 is an automatic double-acting eccentric press for the production of crown caps it is equipped with a 15-punch die and produces more than 110.000 crown caps per hour. It uses or tin plates sized 508*712mm.for the production of standard crown caps.The output for each plate is 270 caps.It can produce up-down caps of electric cell or other caps. |
Auxiliary equipment
PM 1200 MACHINE FOR HOT-MOLDING PLASTIC GASKETS INTO CROWN CAPS Main technical data speed caps per minute: 1000pcs/min Total power:26Kw Consumption of compressed air:12L/h Net weight:<2200kg Overall dimensions:4000*1500*3100mm |
INP 52 PVC Ining INP52 machine is comptible for soya milk and beer caps. Main technical data Speed caps per hour 55000pcs/h Total power 18.4kw Net weight:1580kg |
2. Crown Cap 15 pcs Punching Dies
3. Cap Screening Machine VTC 027
overall dimension:1050*620*1100mm
4. Magnetic Carrier EPN 270
Total power:>0.55Kw
Productivity:110000pcs/hour
Overall dimensions:3520*2160*650mm
5. PPC Moulding Pump
6. Crown Cap Drying Machine EMP 102
7. Operation Box
8. ELECTRONIC CAPS COUNTER CTE
Hour output caps:150000 pcs
Net weight:100KG
Overall dimensions:1100*1400*1250mm
After saling Crown Cap Machinery, if necessary, We will send one or two engineers to set up and commissioning of the Crown Cap Machinery until it running in normal state. Druing the time your workers who will operate the Crown Cap Machinery will be trained.
