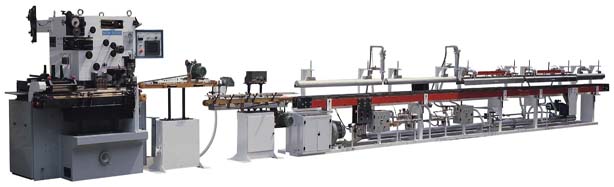

Tin can making machine

tin can making machine,tin can making machine,tin can making machine,tin can making machine,tin can making machine,tin can making machine,aerosol can making machine,aerosol can making machine,aerosol can making machine[09-01-13 17:13:51]

CILMA tin can making machine values exploring and researching in can–making technology and has been supplying the series of can body production line for food processing industry, beverage industry, chemistry industry and more. The material for the can processing can be aluminium, stainless steel, tin can, etc and the final products can be round can, square can, painted can, grude can... It's a very ideal choice for investor who want a stable return in food processing, beverage processing, chemistry and other industry. Should you be interested in our tin can making machine, please contact us and send your requirements and specifications.

Data below are based on our previous successful projects, we can adjust the parameter according to your requirements.

Tin can making machine

Model	Z400	Z300	Z200	Z100
Capacity (cans/min)	350-400	250-300	150-200	80-100
Can diameter (mm)	52-99	52-99	52-155	52-165
Height (mm)	50-200	50-200	45-270	45-270
Plate thickness (mm)	0.14-0.30	0.14-0.30	0.16-0.30	0.16-0.30
Copper wire (mm)	1.24-1.38	1.24-1.38	1.24-1.38	1.38-1.5
Welding speed (m/min)	60	45	30	26
Welding frequency (Hz)	150-450	100-400	80-260	80-260
Weight (kg)	3000	2500	2200	1900
Dimension (mm)	298023702160	298023702100	220013002050	200013002100

Production line configuration

Automatic curling machine

Diameter range	60-170
Max.Width	65-270
Thickness	0.15-0.30
Capacity	According to welding machine
Weight	350
Dimension	12004001430

Welding machine

Capacity	20-70
Welding Speed	14
Can diameter	66-290
Can height	50-150
Sheet thickness	0.16-0.36
Copper wire	1.38-1.6
Power	10
Weight	1500
Dimension	130012001950

Automatic cubitainer flanging machine

Diameter range	50-170
Power	1.1
Heightrange	38-270
Capacity	50
Weight	1000
Dimension	11756201500

Seamer

Range of dianol	50-300
Range of can height	50-400
Capacity	12-16
Power	Weight
Weight	800
Dimension	9805801900

Double head heading machine

Diameter range	120-300
Power	50
Capacity	15-30
Weight	300
Dimension	13108601030

After saling Tin can making machinery, if necessary, We will send one or two engineers to set up and commissioning of the Tin can making machinery until it running in normal state. Druing the time your workers who will operate the Tin can making machinery will be trained.
