Honeycomb paper machine

Honeycomb paper machine[10-03-09 18:12:40]


Introduction of Honeycomb Paper Machine

Our Honeycomb Paper Machine is designed by computer-assistant engineering and high technology. The Honeycomb Paper Machine has proven high efficiency, low maintenance and energy-saving during years of practice. The company is engaged in honeycomb paper producing machinery development, production, sales and service.

The product is new generation honeycomb paper producing machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.

CLIMA is specialized in honeycomb packaging materials product line and the ISO9000 enterprise.Our company has advanced technology and the product erformance is steady and credible.

The product manufactured by this equipment has three excellences,the first, it has high compression resistance,take the 10mmm honcycomb paper board as example,its compression resistance reach up to 0.5kg/cm2 and 2-10 times than the 5-layer corrugated fibreboard;the second, it saves the material cost, the cost is 2/3 times than the corrugated paper and 1/3 times than the wood package;the third,it is environmental,it has no pollution of the plastic and no disease of the wood.The materials including the adhesive are all environmental. It also has characteristics of quakeproof, sound insulation, heat preservation, small cubage which is more excellent than other materials.

Honcycomb packaging paper board is widely used in the package of Precision Instrument,mechanism,electron,chinaware, home electrical appliance and various standards of tray cushion. It is aslo used in the light board frame , decorating board,sunchade , door board interlayer in building industry.Invest in this product line,you will gain rich redound. We supply nice Warranty Services after sale.

Products Information of Honeycomb Paper Machine

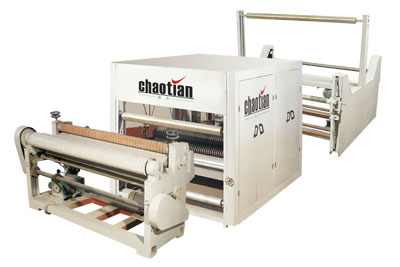

Paper Core System

1、It is important equipment for honcycomb paper core producing and it can cut the honcycomb paper core into various standards of core pieces for the demand of paper board making.
2、The system uses cylinder gluing incessantly and user can choose the mode from running style and flat board style.
3、The system is not limited by the width of base paper and the tensility invariablenes framework is equiped to insure the paper transmission reposefully and the gluing superposition of the two-double paper straightly and veraciously.
4、System composing
(1)running style core system
1、reel transmitting-rising machine
2、cylinder gluing machine
3、running core folding machine
4、disc cutting machine

(2) flat board vertical folding core system
1、automatic paper holding frame
2、rolling gluing machine
3、hob paper cutting machine

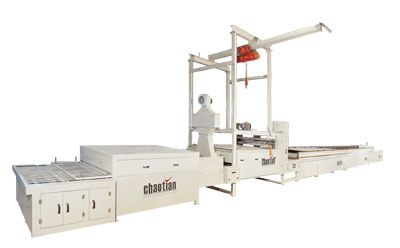

Paper Board Molding System

一、It is the key equipment that make the honcycomb paper core into honcycomb paper board,it integrates the achine,electrical appliance and pneumatic equipment as a whole which make it has a high automatic degree,convenient operation,credible
performance and precise synchronization.

二、It uses central drying technics and saves the heat energy for the paper board drying sharply,meanwhile,it can obviously improve the desiccation degree and the quality stability.To resolve the tensional electric power supply and save cost,our company provides galvanothermy drying and coal-heat drying to
choose.The board cutting machine of this system which keeps ahead at home can cut off the board vertically and isochronously by pneumatic power.

三、system composition
   1、automatic circumrotating butt joint machine
   2、core drawing transportation machine
   3、gluing framework
   4、centralized heat supply framework
   5、drying transportation machine
   6、board cutting machine

Main technical parameter of Ct honcycomb paper board product line: Unit:mm

Model CT-1200 CT-1400 CT-1600
Core length 1400 1600 1800
Core block size 1400×800 ×60 1700×800 ×60 1800×800 ×60
Width 1200 1400 1600
Length It can be chose in 1000-4000
Thickness It can be chose in 7-70
Speed 8-20 m/min
Honcycomb border length It can be chose in 6,8,10,12,14
Relative dryness degree 88%
Core honcycomb drawi 1:15-20

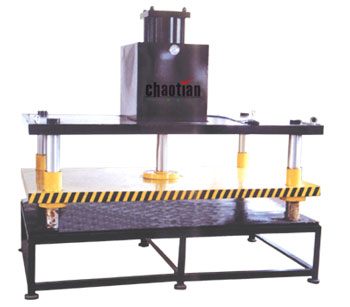

Core Piece Press Machine
一、It is pneumatic press machine and controlled by hand,it is used conveniently and has
credible performance.

二、Main technica parameter
   1、Nominal capacity:50N
   2、sliding block journey:250mm
   3、Max occluding height:400mm
   4、cylinder diameter:320mm
   5、cylinder work press:≤0.5MPa
   6、figure size:2200×1400×2300
   7、net weight:2750kg

All the data are base on our 20 Honeycomb Paper Machine and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
