A type chicken cage
Poultry housing, A type poultry house, A type chicken house, A type chicken cage, Chicken cage[08-12-09 23:04:42]
Chicken cage is the featuring products and service of CLIMA and we've successfully promoted our chicken cage, as well as other poultry-related products in to regions as Africa, Middle East, Europe and South America. Our A type chicken house is made from anti-corrossive material with long durability. The cage can be made with 3-5 layers with automatical feed feeder. It's a ideal choice for the owner of chicken plants all over the world. For more specific information, please logon to our website about poultry products: www.poultryhouse.org.cn
All data below are based on our previous successful projects, we can adjust the specification according to your requirements. |

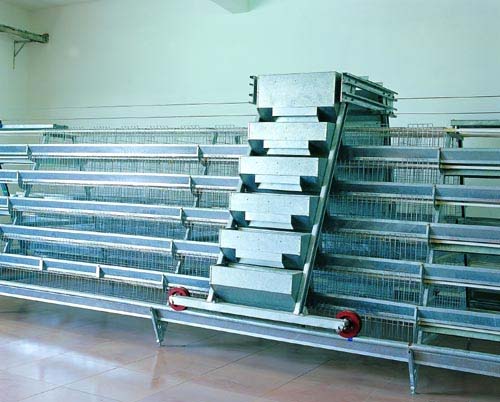

CLIMA A type chicken cage
Our automatical A type chicken cage made from high anti-corrosive material, such as hot galvanized steel or stainless steel, which give a guarantee in long durability. The cage can be set with 3-5 layers or more, with an automatical feeding system. Other features of our A type chicken cage include: high stock density, smooth hopper trolley movement and smooth feed distribution, easy maintenance and operation.
Equipments list |
Cage system |
Automatic feed supplier |
Path of feed supplier |
Feed trolley |
Water fall type temperature cooling system |
Fan (ventilation) system |
Waste cleaning machine |
Beak cutter/debeaking machine |
Drinking Nipple |
Pictures of CLIMA A type chicken cage

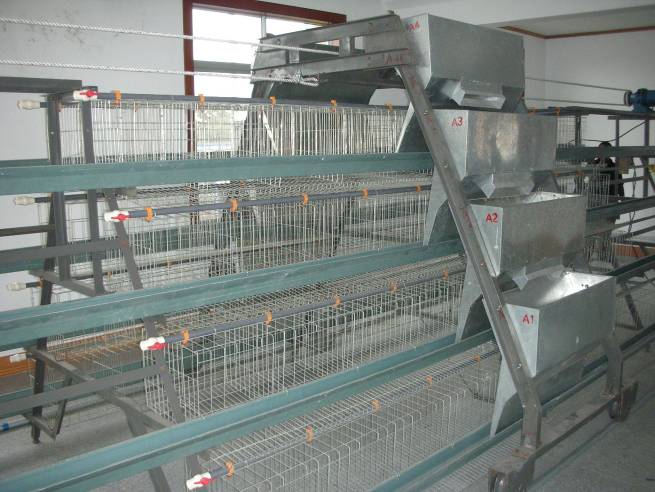

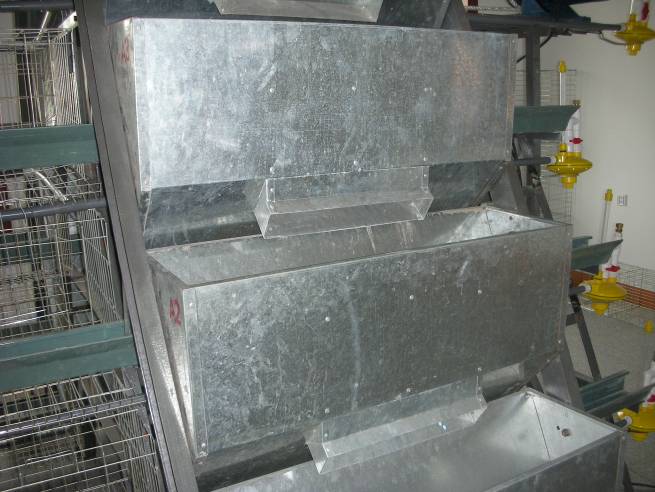

Cage system with automatic feed supplier |
||

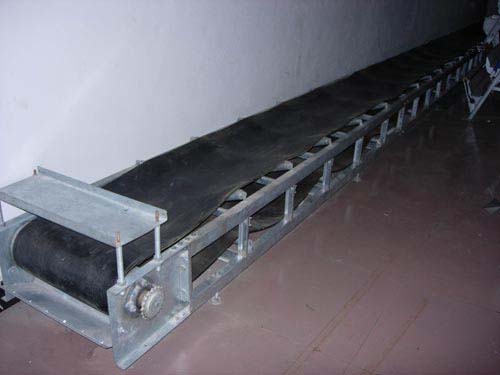

Drinking nipples and waste cleaning |
||

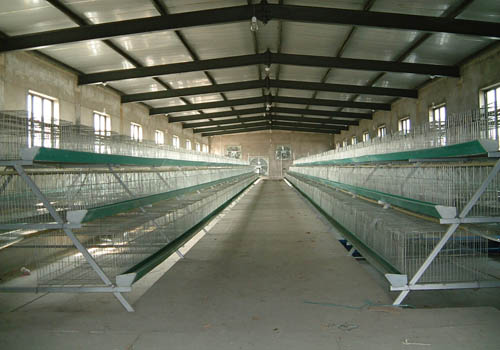

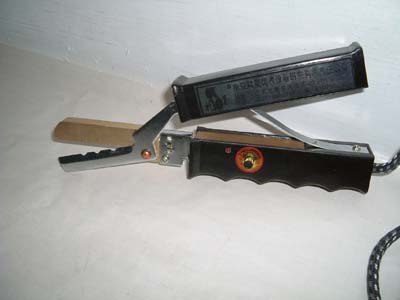

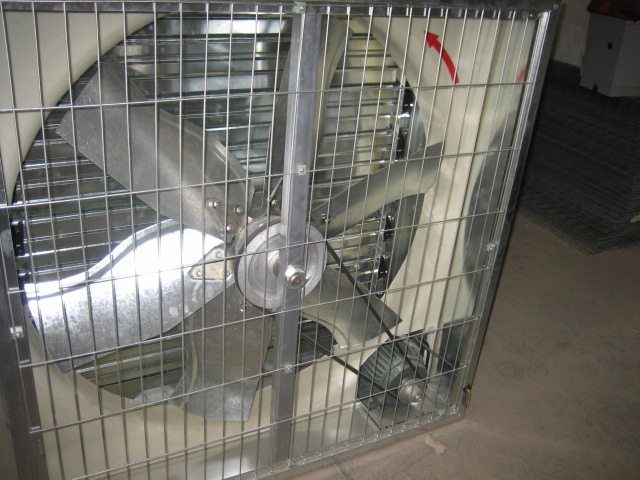

Beak cutter, ventilation fan and the whole plant |
||
Parameter of A type chicken cage
Model |
Length/group(mm) |
Width/group(mm) |
Height/grounp(mm) |
Chicken/group |
Chicken/cage |
Layer |
CLIMA-3120 |
1980 |
2535 |
2101 |
120 |
4 |
3 |
CLIMA-4160 |
1980 |
3070 |
2631 |
160 |
4 |
4 |
CLIMA-390 |
1980 |
2274 |
1950 |
90 |
3 |
3 |
CLIMA-372 |
1590 |
2274 |
1950 |
72 |
3 |
3 |
CLIMA-4120 |
1980 |
2742 |
2430 |
120 |
3 |
4 |
After saling A type chicken cage, if necessary, we will send one or two engineers to set up and commissioning of the A type chicken cage until it running in normal state. During the time your workers who will operate the Incubator/hatcher will be trained.
