Bubble gum production line

Bubble gum production line[10-03-02 11:51:38]


Introduction of Bubble Gum Production Line
Our Bubble Gum Production Line is designed by computer-assistant engineering and high technology. The Bubble Gum Production Line has proven high efficiency, low maintenance and energy-saving during years of practice. The company is engaged in soap producing machinery development, production, sales and service.

The product is new generation Bubble gum producing machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.

Products Information of Bubble Gum Production Line

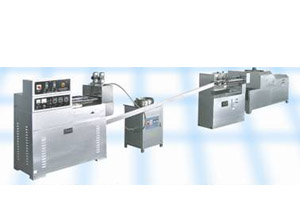

The processing line is an advanced equipment for making stick shape Bubble gum without coating or square shape sugar shell coated Bubble –gums. It is a new technology processing style to make Bubble gum products, six stages rolling with water cooling can guarantee the quality of final products.

Bubble gum production line

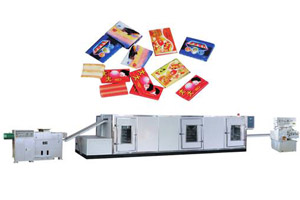

YP-150 abnormal bubble gum plant is an ideal solution for requirements to produce bubble gum in various kinds of shapes, such as sphere, ellipse, watermelon, dinosaur egg, flagon and so on.


Bubble gum production line

This plant can produce X shape, squareness, corrugated shape, V-iron shape bubble bum, and this plant is easy aperation, reliable function.
Temperature constant system, ensure the confection fresh and sugar strip identical.
Adopt tri-angle prism groove roller, keep the pressure put on the confection steady, and the amount of the confection extruded even, and has good appearance.

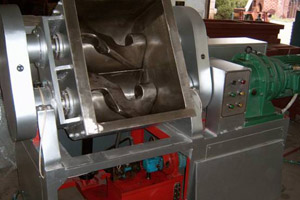

200L Mixer

The equipment is used for mixing the raw materials, the parts that contact candy is stainless steel; the frame is made of normal steel and angle iron, rectangle tube with painting. The volume is 200L, leaning angle is <80 degrees, the motor power is 19.6kW, the shell dimension of the equipment is: 2540 x 820x 1250mm.

Extruder(double screw)

The equipment is made of extuder screw,forming model,motor and has 4 screws,the length of the screw is600mm,main motor power is 11kw,heat power is 3.6kw,it’s weight is 1800kg and size is 2550*1600*1700mm.

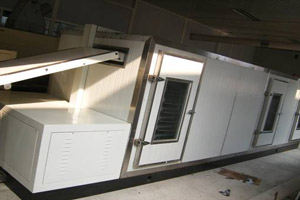

cooling conveyor

Speed:16 m/min
main motor power:3 kw
air condition power:13 kw
water temperature:≤30℃
air condition size:4×25 m2
heat power:5×2 kw
air condition fan power:12x0.09 Kw
fan power:2×0.75 kw
size:10850x1900x2080 mm

All the data are base on our 20 Bubble gum production line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
