Flexographic printing machine

Flexographic printing machine[08-12-05 22:13:03]

We provide a wide range of flexographic printing machine, our flexographic printing machine offers high rate of production and enhanced efficiency. It prints paper, board & corrugated sheets with either water based ink or solvent based ink. The fast printing speed, multi-color print, and outstanding printing quality make them to be an ideal choice for entrepreneurs. There are 4 color, 6 color and more models of flexographic printing machine for you to choose from.

All data below are base on our previous successful projects, we can adjust the specification according to your requirements.

YT SERIOUS FOUR COLOR FLEXOGRAPHIC PRINTING MACHINE

Four color flexographic printing machine exporter.This type of four color flexographic printing machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

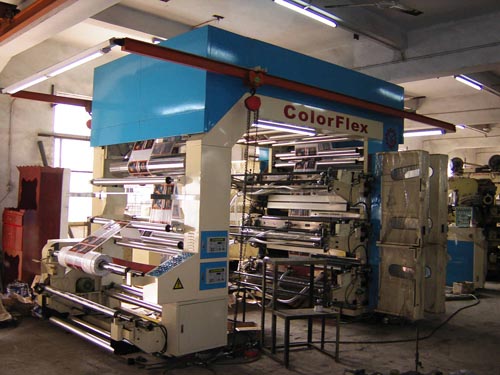

Four color flexographic printing machine

Performance and Characteristics of flexographic printing machine:

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuitwhen the machine stops.
6. 3600continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are Inching ,Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Variables of four color flexographic printing machine:

Type	YT-4600	YT-4800	YT-41000
Max. Web Width	600mm	800mm	1000mm
Max. Effective Pringting Width	560mm	760mm	960mm
Range of Repet Printing Length	191-914mm	191-914mm	191-914mm
Max. Diameter of Roll Material	φ450mm	φ450mm	φ450mm
Printing Speed	5-50mmin	5-50mmin	5-50mmin
Plate Thickness(Both side adhesive tape includes)	2.38mm	2.38mm	2.38mm
Total Power	10.87KW	12.5KW	14.37KW
Weight of Machine	3000Kg	3500Kg	4000Kg
Overall Dimension	4200×1600×2400mm	4200×1800×2400mm	4200×2000×2400mm

YT SIX COLOR FLEXOGRAPHIC PRINTING MACHINE

This type of flexographic printing machine is suitable for printing such packing materials as polyethylene,polypropylene bag,glass paper and roll paper,etc.And it is a kind of ideal printing equipment for producing paper packing bag fi food,supermarket handbag,vest bag and clothes bag,etc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.。

Six colour flexographic printing machine

Performance and Characteristics of six colour flexographic printing machine：

1、Easy operation, flexible starting,accurate color register。
2、The meter counter can set printing quantity according to the requirements.Stop the machineautomatically at the quantity or when the material is cut off。
3、Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink after lifting。
4、The printing ink is spread by the knurled cylinder with even ink colour。
5、Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops。
6、360°continuous and adjustable longitudinal register device.。
7、The imported frequency control of motor speed adapts to different printing speeds

Main Technical Variables of six colour flexographic printing machine:

Type	GF-600A	GF-800A	GF-1000A
Max. Web Width	600mm	800mm	1000mm
Max. Effective Pringting Width	560mm	760mm	960mm
Range of Repet Printing Length	191-914mm	191-914mm	191-914mm
Max. Diameter of Roll Material	φ450mm	φ450mm	φ450mm
Printing Speed	5-50mmin	5-50mmin	5-50mmin
Plate Thickness(Both side adhesive tape includes)	2.38mm	2.38mm	2.38mm
Total Power	13KW	15KW	18KW
Weight of Machine	3500Kg	4200Kg	5000Kg
Overall Dimension	3900×1660×2950mm	3900×1860×2950mm	3900×2060×2950mm

After saling flexographic printing machine, if necessary, We will send one or two engineers to set up and commissioning of the flexographic printing machine until it running in normal state. Druing the time your workers who will operate the flexographic printing machine will be trained.
