Envelope making machine

Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,Envelope making machine,[08-12-13 15:13:33]

Our envelope making machine adopts rapid changeover to produce high-quality bocklet(wallet), diagonal(banker) and a wide variety of non-window style envelopes such as diskette envelopes, air ticket holders, compact disk envelopes, currency envelopes and more. It can also accept color printed outside or inside. The features of the machine include easy installation, low noise, low cost and high efficiency.

All data below are generally based on our previous successful projects and are only for your reference, we can adjusted the parameter according to your needs.

Installation and testing machine

TM1245 Model Automatic Patching Machine

TM1245 Model Automatic Patching Machine is applied to the patch the flim on the window of pocket envelope, bank & wallet encelope and flat bags.

Specifications
Max.blank width	410mm
Max.blank length	350mm
Paper weights ca	80～120g/m²
Max. output	10000pcs/h
Patching size	W:35～140mm 　L:60～180mm
Capacity requirements	3kw
Machine dimensions(L×W×H)	2130×700×1720(mm)
Machine weight	1200kg

JYT2801 Model Envelope Sealing Flap Gumming Machine

JYT2801 Model Envelope Sealing Flap Gumming Machine is the necessary equipment in the production of sealing flap foreapplied rewet gum envelopes.

Specifications
Max.blank width	520mm
Max.blank length	350mm
Paper weights ca	70～120g/m²
Max. output	10000pcs/h
Capacity requirements	16.75kw
Machine dimensions(L×W×H)	5100×1400×1780(mm)
Machine weight	2500kg

MQ550 Model Hydraulic Die Cutting Press

MQ550 Model Hydraulic Die Cutting Press with contour tooling is designed for envelope production, as well as for processing of paper, cardboard, leather, plastic and other materials.

Specifications
Max.blank size	550×420mm
Min.blank size	170×130mm
Table plate dimensions	550×420mm
Max.cuntting force	250kn
Output	20000pcs/h
Power	3kw
Machine dimensions(L×W×H)	980×800×1480(mm)
Net weight	1200kg

PD124 Model Pocket Envelope Making Machine

The PD124 Model Pocket Envelope Making Machine is especially suitable for production of pocket style envelopes and flat bags, in particular for bags used for food, seed, in pharmacy etc.

Specifications
Pocket sizes( Max.)	120×240mm
Pocket sizes( Min.)	50×80mm
Paper weights ca	60～120g/m²
Max. output	12000pcs/h
Capacity requirements	4.1kw
Machine dimensions(L×W×H)	1550×850×1230(mm)
Machine weight	1000kg

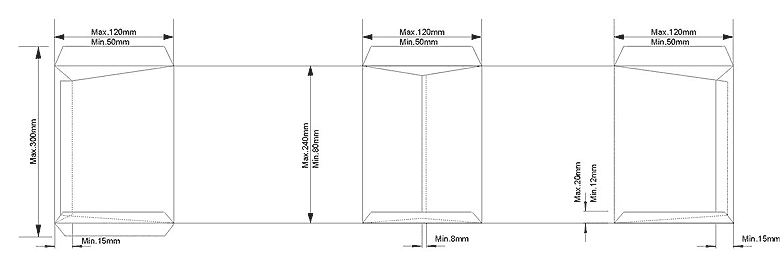

The Part Design of Envelope
of PD124 Model

PD135 Model Pocket Envelope Making Machine

The PD135 Model Pocket Envelope Making Machine is designed mainly for the production of larger and medium-sized envelopes.

Specifications
Pocket sizes( Max.)	240×350mm
Pocket sizes( Min.)	110×176mm
Paper weights ca	70～120g/m²
Max. output	8000pcs/h
Capacity requirements	4.5kw
Machine dimensions(L×W×H)	2400×1000×1560(mm)
Machine weight	1800kg

The Part Design of Envelope
of PD135 Model

PF2916 Model Banker & Wallet Envelope Making Machine

PF2916 Model Banker & Wallet Envelope Making Machine is applied to the production of Banker & Wallet Envelopes.

Specifications
Max.blank width	520mm
Max.blank length	350mm
Paper weights ca	70～120g/m²
Max. output	10000pcs/h
Capacity requirements	4.5kw
Machine dimensions(L×W×H)	3940×1810×1315(mm)
Net weight	2380kg

The Part Design of Envelope
of PF2916 Model

KTM1245 Model Window Patching Machine

KTM1245 Model Window Patching Machine is applied to opening window and patching the flim on the all kinds of envelopes and flat bags.

Specifications
Max.blank width	410mm
Max.blank length	350mm
Paper weights ca	70～120g/m²
Max. output	10000pcs/h
Window size	W:15～120mm 　L:40～160mm
Patching size	W:35～140mm 　L:60～180mm
Capacity requirements	4.5kw
Machine dimensions(L×W×H)	2260×1090×1720(mm)
Machine weight	1200kg

Option　

More information about Pump　


Envelope Cutting Mould	Rewet Gum

After saling Envelope making machine, if necessary, We will send one or two engineers to set up and commissioning of the Envelope making machine until it running in normal state. Druing the time your workers who will operate the Envelope making machine will be trained.
