Prefabricated house

Prefabricated house[10-01-08 18:27:39]

Introduction of prefabricated house

We are a professional prefabricated house, or modular house supplier & installer in China. According to customers' requirement and local condition, we designed reasonable prefabricated house and prefab house campus for clients. The material of house component manufactured are all best-quality, and after shipment, our experienced assembly team can go to our customers' construction sites for installation.

We have been engaging in manufacturing and exporting pre-fab house for many years and win a good reputation all over the world. For more information, please visit our special website:

Products Information of prefabricated house

In CLIMA prefabricated house, we believed that designing is the most important sector.

We introduced campus concept in our designing. The prefabricated housees are not only a simply group of buildings, but a campus where staffs live, relax and recreate.

The campus designed by us is based on local condition, number of staffs to be lived in, as well as clients' requirements. Staffs' convenience and recreation are also considered. The mobility and easy-installation are also features of our house.

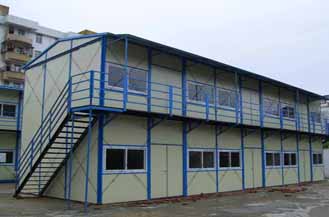

Slope-crest prefabricated house

CLIMA prefabricated house is composed of pre-coated steel structure. 50mm thickness color-coated steel PU sandwich boards have been chosen for wall panels which can obtain a high heatl insulation and offer a good environmental comfort.
Wall boards are interchangeable in case doors and windows may be fitted in any perimetric position.
Roof plate: double-sided color-coated steel plate with PU foam (Polyurethane) insulation
Thickness: 20mm
PU density: 14kg /m3
Wall panels: Color-coated steel sandwich plate with XPS (Expanded Polystyrene) or PU foam insulation
•Thickness: 50mm
•XPS density: 14 kg /m3
•PU density: 14 kg /m3
Doors: same as wall panel
Windows: Aluminum alloy framed window with sliding glass, standard type windows are 800* 1000mm dimensioned, band type windows are 800* 450mm dimensioned,.
Steel structure: Pillars are bolted with the foundation bolts. The bolts are grouted in concrete footing foundation.
Steel structure columns: 2C -80X40X20X2.0 (C type steel) are two kinds: Corner Column and Frame Column
Steel columns frame will be bolted. The square shape steel ground beam will connect to the pillars to give extra strength to the entire structure against loads under:

Flat roof prefabricated house

The configuration of flat roof prefabricated house is basically the same as that of slope-crest prefabricated house. The difference lies in the its flat roof, which costs less and is common in regions with little rain falls.

Dimension per one unit

Standard: 14.72 M × 14.72 M × 2.86 M

Layers can be decided be customers.

Area of land measured: S= = 216.68 sqm

Span life : At least 15 years.

Packing: One 40' HQ container can load demounted house components of 220 sqm.

Installation: One skilled worker can complete the erecting of 15-20 sqm every day.

Folding container house





Main body

Flexible light steel structure, using C shape steel, H shape steel, square bar flat bar and others in pillars, beams, purlins, truss and so on. Bolted on a concrete foundation.



Color-coated steel sandwich panel made of single-layer steel sheets and PU. Total thickness 20mm, heat and sound insulated.


Wall board

Color-coated steel sandwich panel made of double-sided steel sheets and the middle layer of XPS or PU. Total thickness 50mm, heat and sound insulated.



Same as wall board



Aluminium alloy and sliding glass

Technical parameter

Snow load: 60kg / m²

Internal and External wall heat transmission coefficient: 0.35Kcal/m²h℃

Roof heat transmission coefficient: 0.21Kcal/ m²h℃

Moving floor load(Based-Plate Load Capacity): 200kg / m²

Wind resistance: grade 11 (wind velocity: 111.5km/h )

Earthquake resistance: grade 7

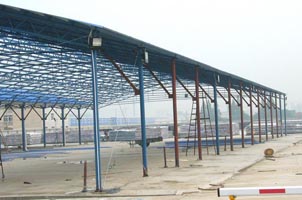

Light steel structure warehouse

The proposed building consists of a structural frame made of steel columns, beams and trusses and a shell made of wall and roof panels.

The foundation is a reinforced concrete platform. Not included to scope of work.

The building is planned for
1. Roof Snow load of 100 kg/ m2
2. Wind load of 50 kg/ m2

All the data are base on our 20 prefabricated houses and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
