Peanut oil mill machinery

Peanut oil mill machinery, peanut oil refining machine, peanut oil plant[08-12-03 18:46:29]

CLIMA peanut oil milling plant sets out to select premium peanut, after the procedures of washing, roastering, milling, extracting, refining and filling, finally output good-quality edible peanut oil. The same principle can also be adopted in the oil refining from colza, seeds and other source of edible oil.

The data below are only for customers' reference, we can adjusted the specification according to your requiremnets.

Project

Peanut oil milling and refining
Capacity: 250-350kg/h
Material: peanut with or without shell

Proposed flow chart for reference

Peanut→Cleaning up→Concentration→Braising\frying→Squeezing→Filtration→Gross oil

Main Equipment list

Number	Model	Power	Qty
1.	sheller machine	2.2kw	1 set
2.	rosted machine	1.1kw	2 set
3.	oil extractor	12.1kw	1 set
4.	3T oil refiner	20kw	1set
5.	bottling machine	6-10b/min	1set
6.	accessories	c	1 set

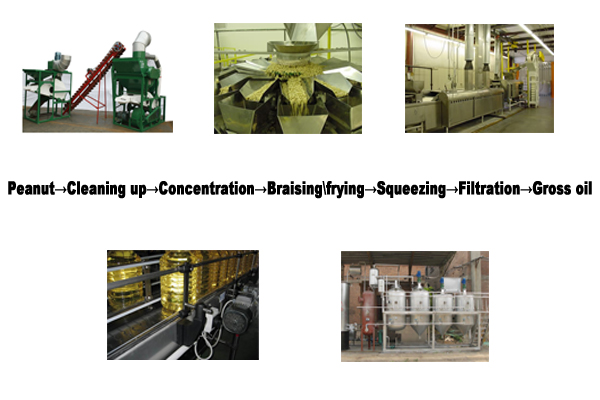

Reference pictures

Plant layout

After saling Peanut oil mill machinery, if necessary, We will send one or two engineers to set up and commissioning of the Peanut oil mill machinery until it running in normal state. Druing the time your workers who will operate the Peanut oil mill machinery will be trained.
