Pouch making machine

Pouch making machine, pouch making machine, Pouch making machine, pouch making machine, Pouch making machine, pouch making machine, Pouch making machine, pouch making machine, Pouch making machine, pouch making machine, Pouch making machine[08-12-22 20:47:46]

Pouch making machine

Pouch making machine has wide applications.This type of Pouch making machine inherits all the merits of Pouch making machine, enhanced by new technology. Compared with other Pouch making machine, our Pouch making machine enjoys many advantages including: more reasonable structure, more compact appearance, smoother operating, higher efficiency and is easy to operate and maintain. Pouch making machine has wide adoptablity, is an ideal Pouch making machine for you to convert into production. Pouch making machine that you need is just we can supply. We are one of the most famous Pouch making machine exporters in China. We have been supplying a whole set of Pouch making machine for overseas customers. We would like to provide maximun customer satisfaction at lowest possible cost and best after-sale service. If you need Pouch making machine, please feel free to contact us.

ZFD high-speed middle sealing pounch making machine

ZFD high-speed middle sealing pounch making machine

Product ID：ZFD
Sort：Make-bag machine series
Name：ZFD High-speed Middle Sealing Pouch Making Machine
ZFD High-speed Middle Sealing Pouch Making Machine
Application: This machine suitable produce pouch, T shape bag and middle sealing bag from BOPP, PET, CCP, Nylon, co-extrusion film, aluminum foil,metallized laminating film etc.

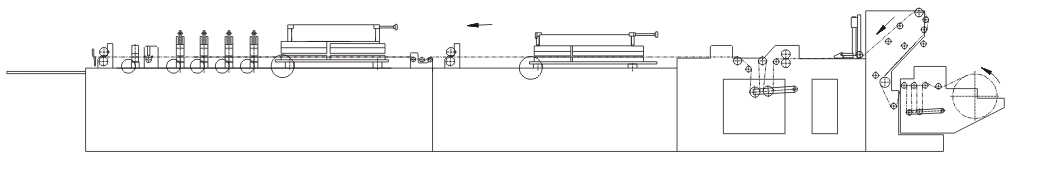

Across membrane chart

Technical Data
Type                                         ZFD-400
Max. Diameter of Roll Material               ф600mm
Max. Width of Roll Material                  1000mm
Pouch-making Width                           420mm
Pouch-making Length                          60～300mm(multiple material feeding )
Capacity                                     120 pieces/min
Temperature Control Range                    0~300°C
Total Power                                  15.6Kw
Weight of Machine                            3500kg
Overall Dimension                            L10000×W1750×H1400mm

Performance and Features：
Performance and Features：
1.Whole machine controlled by central PLC control system, various   parameters of operation can be displayed by dynamic screen.
2.Driven by dual-servo, dual frequency conversion and twice motor for   unwinding ensure material go through stably.
3.Unwinding tension controlled by PCL automatic tension controller,   equipped with magnetic powder brake and frequency conversion speed   regulation for unwinding.
4.LPC automatic deviation-rectifying for unwinding, unwinding   deviation-rectifying forming method: first forming then sealing 5.Combination spring press sealing device for longitudinal sealing 6.Combination spring press sealing device for horizontal sealing,   Combination cooling device driven by servo motor
7.Middle tension driven by servo motor, dancing roller for tension   detective, compensate and control the step length of middle servo   motor, ensure the both edges of pouch neat and stable.
8.Main frequency conversion motor, central computer control
9.Light point sensor detective position location, compensated by servo   controller.
10.Nine route independent constant temperature control.
11.Two set of punch device available, easy operation.

ZSD series middle-sealing, Three-side sealing dual-purpose pouch-making machine

ZSD series middle-sealing, Three-side sealing dual-purpose pouch-making machine

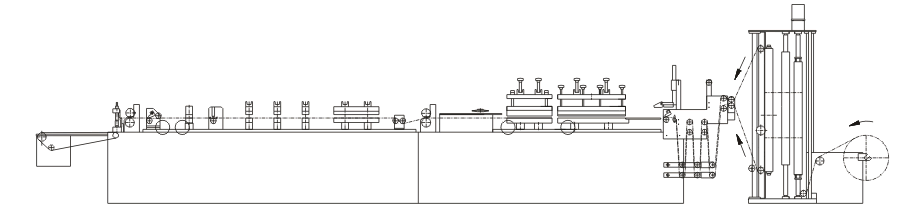

Across membrane chart

ZSD Series Middle-sealing, Three-side Sealing Dual-purpose Pouch-making Machine

Application: With such characteristics as reasonable structure, easy operation and high automation, this machine is suitable for producing various plastic-plastic, paper-plastic, paper-paper laminated materials and it is a kind of idealpouch-making equipment for producing three-side sealing bags.

Technical Data
Type                                       ZSD300                   ZSD420
Max. Diameter of Roll Material             ф600                     ф600
Max. Width of Roll Material                600mm                    800mm
Pouch-making Width                         50～280mm                50～400mm
Pouch-making Length                        50～300mm                50～300mm
                               （multiple material feeding）（multiple material feeding）
Capacity                                   40～100 pieces/min       40～100 pieces/min
Total Power                                11.5Kw                   13.1 Kw
Weight of Machine                          2300kg                   3000 kg
Overall Dimension                          6395×1120×1600mm       6935×1220×1600mm

Performance and Features：
1. The whole machine adopts PLC control system.
2. All the parameters adopt CRT real-time display. The pouch-making speed, pouch-making length, temperature, counting and conveying of finished products, etc. can be preset.
3. LPC automatic deviation-rectifying, double photocell tracking.
4. The temperature can be centrally controlled by computer.
5. Automatic blowing and collecting of rim charge, electrostatic elimination.
6. The whole machine has centralized fuel filling system for every lubricating point.
7. The main machine adopts imported frequency control of motor speed.

SDL series Laminating-bag Multi-function Pouch-making machine

SDL series Laminating-bag Multi-function Pouch-making machine

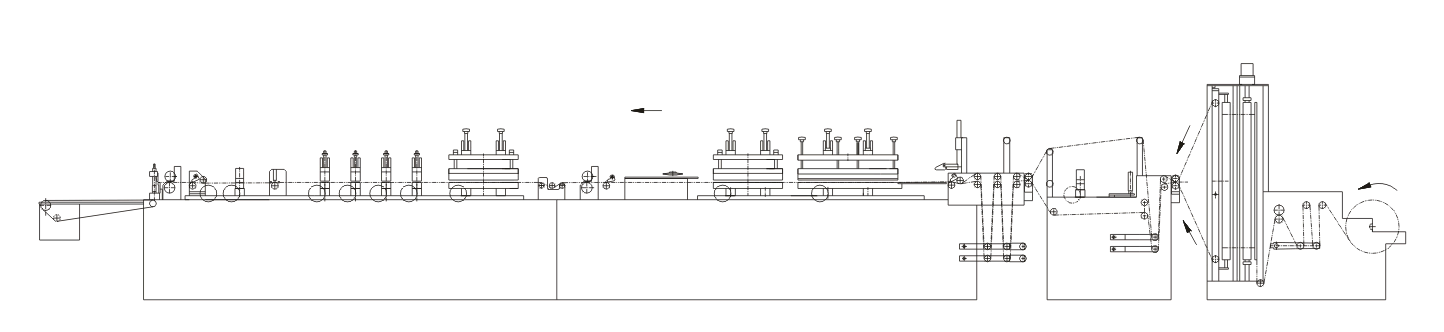

Across membrane chart

SDL Series Laminating-bag Multi-function Pouch-making machine

Application: With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing various plastic-plastic, paper-plastic, paper-paper laminated material and it is a kind of ideal bag-making equipment for producing three-side sealing. five-side sealing standing bags.

Technical Data
Type                                     SDL420                    SDL520
Max. Diameter of Roll Material           ф600                      ф600
Max. Width of Roll Material              800mm                     1000mm
Pouch-making Width                       60～400mm                 60～500mm
Pouch-making Length                      60～300mm                 60～300mm
                         （multiple material feeding）          （multiple material feeding）
Capacity                                 40～120 pieces/min        40～120 pieces/min
Total Power                              27Kw                      31 Kw
Weight of Machine                        3500kg                    4000 kg
Overall Dimension                        9350×1600×1600mm        9350×1700×1700mm

Performance and Features：
1. The whole machine adopts PLC control system.
2. All the parameters adopt LCD screen real-time display. The pouch-making speed, pouch-making length, temperature, counting and conveying of finished products, etc. can be preset via touch screen.
3. LPC automatic deviation-rectifying, double photocell tracking.
4. The temperature can be centrally controlled by computer.
5. Automatic blowing and collecting of rim charge, electrostatic elimination.
6. The whole machine has centralized fuel filling system for every lubricating point.
7. The main machine adopts imported frequency control of motor speed.

HDL series High-speed (Three-servo) Three-side Sealing Zipper Standing Pouch-making Machine

HDL series High-speed (Three-servo) Three-side Sealing Zipper Standing Pouch-making Machine

HDL Series High-speed (Three-servo) Three-side Sealing Zipper Standing Pouch-making Machine

Application: This machine is a kind of updated Model WSD-600A Full-automatic High-speed Three-side Sealing Bag-making Machine and is suitable for producing two-layer or multi-layerthree-side sealing laminated film pouches (pouches for food, washing powder and sweets, etc.)which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material. With such characteristics as easy operation, smooth product, stiff and smooth and beautiful appearance, high-strength thermal edge sealing and high pouch making speed, it is a kind of ideal equipment for packing and making pouches.

Technical Data
Type                                  HDL-500                    HDL-600
Max. Diameter of Roll Material        ф600mm                     ф600mm
Max. Width of Roll Material           1040mm                     1240mm
Pouch-making Width                    60～500mm                  60～600mm
Pouch-making Length         30～300mm(multiple material feeding) 30～300mm (multiple material feeding)
Capacity                              30～120 piece/min          30～150 Piece /min
Temperature Control Range             0～300°C                  0～360°C
Total Power                           32Kw                       35 Kw
Compressed Air                        0.6mPa                     0.6mPa
Cooling water                         5L/min                     5L/min
Weight of Machine                     5500kg                     6000 kg
Overall Dimension              L11500×W2300×H1865mm   L11500×W2400×H1865mm

Performance and Features：
1. The whole machine adopts industrial control level computer and auxiliary three-servo control system.
2. All the parameters adopt LCD screen real-time display. The pouch-making speed, pouch- making length, temperature, counting, punching and conveyor quantity of doubling finished products, etc. can be preset via touch screen.
3. Releasing tension can be controlled by full-automatic adjustable magnetic powder constant tension control system.
4. Automatic alarm for releasing tension, central tension, color mark losing and out of temperature limit, etc.
5. LPC automatic deviation-rectifying, double photoelectric tracking. 6. New type pressure-lifting 6 times conveying function
7. Computer 16- route PID constant temperature control.
8. Pneumatic multi-functional punching, automatic collecting of cut rim charge, electrostatic elimination.
9. Technology of double self-standing pouch, double concave-convex buckle device is in the lead at home, which can truly make pouch by one machine with multiple functions.

YZD-600 Pouch making machine

YZD-600 Pouch-making Machine

Application: Suitable for production of medical paper pouch for medical treatment and civil air industry (for instance, air sick pouch)

Technical Data
Type                                 YZD-600
Max. Diameter of Roll Material       ф600mm
Max. Width of Roll Material          600mm
Pouch-making Width                   600mm
Pouch-making Length                  300mm
Mechanical Speed                     120pieces/min
Pouch-making Line                    1-5 line
Temperature Range                    0～300°C
Total Power                          26Kw
Weight of Machine                    4000kg
Overall Dimension                    L6500× W1700×H1700mm

Performance and Features：
1.Main motor with frequency conversion speed regulation
2.Middle and cutter material dragging driven by servo motor
3.Automatic adjustable magnetic constant tension control system for unwinding
4.Double EPC, double encoder unwinding device
5.Pneumatic impress device
6.Whole machine controlled by PLC dual-servo control system
7.All the parameters adopt LCD screen real-time display. The pouch-making speed, pouch- making length, temperature, counting, etc. can be preset via touch screen.
8.Multi-line pouch making introduce disk knives for slitting.

Get meore information about film blowing machine, please click there

Get meore information about film slitting machine, please click there

Get meore information about film laminating machine, please click there

Get meore information about pounch making machine, please click there

Get meore information about garbage bag machine, please click there

Get meore information about heat sealing & cold cutting bag making machine, please click there

Get meore information about transverse slicer, please click there

Get meore information about soft handbag making machine, please click there

After saling Pouch making machine, if necessary, We will send one or two engineers to set up and commissioning of the Pouch making machine until it running in normal state. Druing the time your workers who will operate the Pouch making machine will be trained.
