LDPE film Recycling Machine
plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,plastic film recycling machine,[09-04-04 14:51:58]
This LPPE film, or LDPE garbage bag recycling machine is suitable for recycling, regenerating and granulating of waste LDPE plastics film and garbage bag. The recycling production line is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The LDPE film granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. Each unit of the LDPE garbage bag recycling unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Raw Material for recycling |
||
|
|
|
LDPE Garbage Bag |
|
LDPE Film |
LDPE film/LDPE garbage bag recycling machine - Production line configuration
Capacity: 300kg/h
Technical flowchart
Raw material -- Automatic feeder -- Cutter & Shredder -- Washer -- Extruder -- Granulator -- Vibrating screen -- Whirlwind type silo
1. Lift conveying machine motor power: 1.5kw VVVF |
2. Cutting and Shredder motor power: 55kw cutting speed: 1200r/min rotation cutting knife: 2 sets, 6 pieces fastened knife: 12 pieces inside temperature senser: 1piece pelletizing system: 1 set cleaning gate air exhauster |
3. Extruder screw diameter: 100mm. Material 38CrMoAIA L/D: 30:1 Motor power: 75kw. DC motor Speed regulator Gear box Electrical device: temperature controller RPC Preheater: ceramic with stainless steel cover Heater power: 5 group heater. Each power 6kw. Total power 30kw. 5 group blower. Each power 0.37kw. total power 1.85kw Mould heating; 2 group x 4kw, 8kw Screen exchange: automatic hydraulic control Mould: 40Cr Mould die diameter: 3mm Alarm: light and sound Capacity: max to 350kg/h |
4. Granulator motor power: 1.1kw pelletizing knife: rotation nife 1set. Spare 1 set |
5. Vibrating screen vibrating motor power: 0.75kw material: stainless steel |
6. Wind power conveying system blower power: 5.5kw material: stainless steel |
7. Whirlwind type silo volume: 1m3 material: stainless steel fileter system cleaning gate loading and unloading indicator |
Pictures for reference
|
|
|

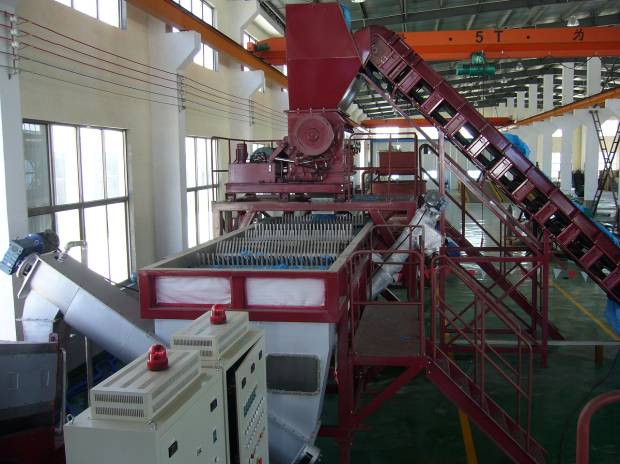

Automatic feeder |

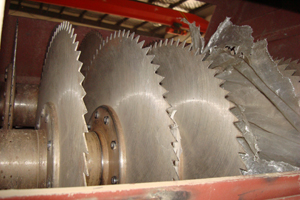

Cutter |
|
|
|
|
Washer |

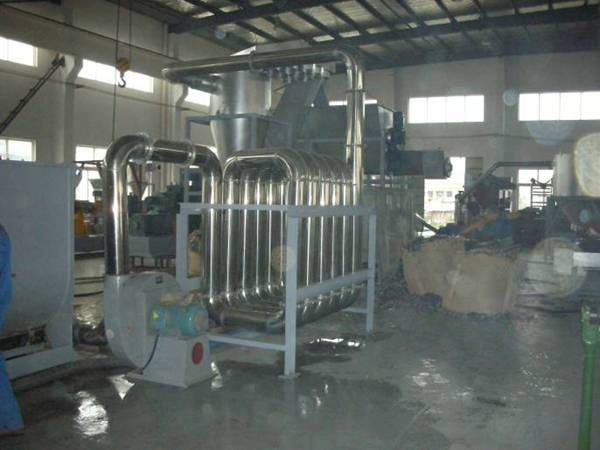

Wind power conveyor |
|
|
|
|

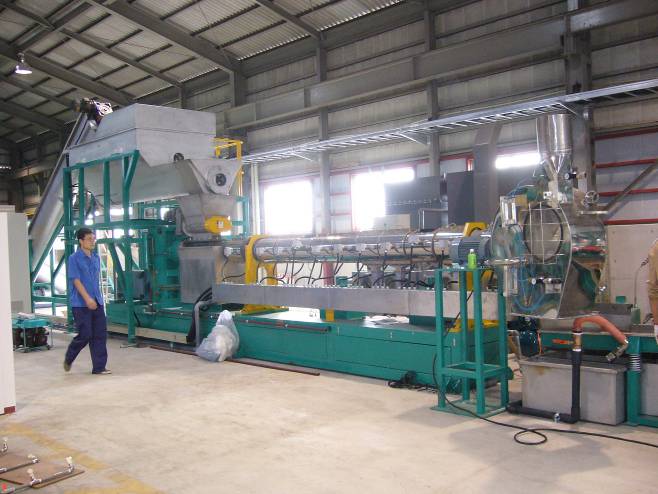

Extruder |

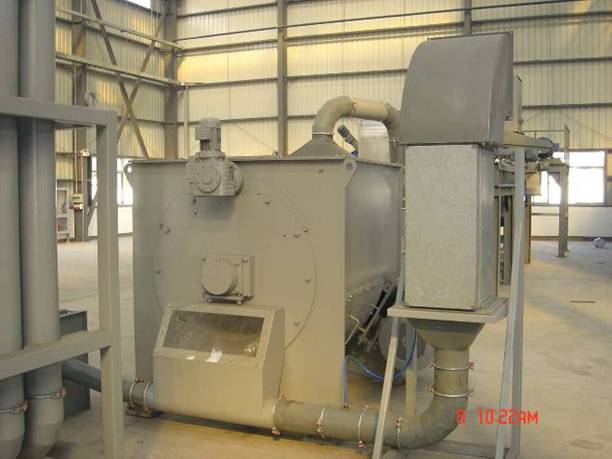

Dewatering machine |
After selling LDPE film recycling machine, we will sent engineers to our oversea clients' workshop for assembly. The local staff will also be trained during the installation.
