Rope making machine

Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine, Rope making machine[09-01-09 09:50:21]

We provide the whole set of production line with the advanced technique. Rope Making Machines are available in 3 (Three) and 4 (Four) strands (ply) for rope diameters of 2 mm to 48 mm. Ropes can be made from nylon, monofilament yarn, PP tapes (Sutli), HDPE and LDPE tapes, synthetic yarns, cotton & jute yarns, manila and sisal etc., all from the same machine. The manufacturing technique is the first-level in China and the features contain easy-operation, low-noise and multifuctional.

The data below are based on our previous successful projects, we can adjust the specification according to your requirements.
rope making machine

Equipment list

Number
Equipement
Qty
1
PP/PE yarn extruder
1
2
Filament Drawing Machine
1
3
Oven
1
4
Bobbin winder(20 heads)
1
5
Stranding making machine (32 spindles)
Set
6
Rope making machine
Diameter(20-28mm)
1
7
Diameter(16-22mm)
1
8
Diameter(10-16mm)
1
9
Diameter(5-10mm)
1
10
Diameter(3-7mm)
1

Pictures for reference plastic yarn extruder for rope making production line

rope making machine

rope making machine

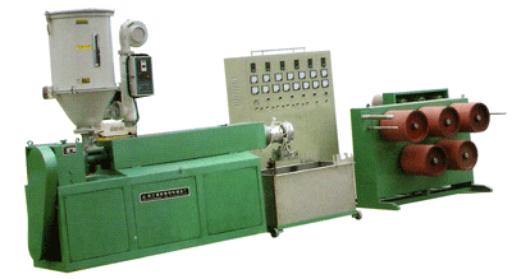

Plastic yarn extruder for rope making production line

Cooling tank of plastic yarn extruder for rope making production line



rope making machine

   rope making machine

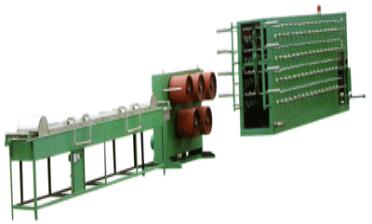

Bobbin winders for rope making production line

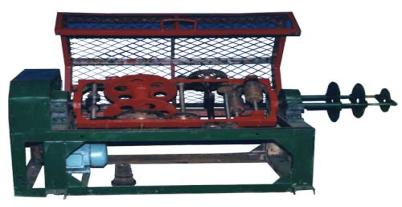

Strand making machine for rope making production line



rope making machine

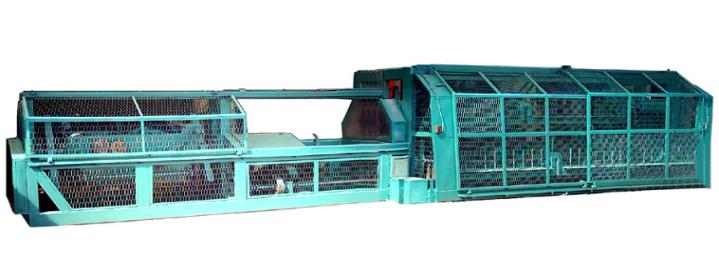

Rope making machine


Specification of main equipments

PP/PE yarn extruder
Description:
PP\ PE Yarn Extruder and Stretching Machine (Tape Production Line) can be used to make the PP/HDPE Flat Yarn and the PP/HDPE Flat Yarn can be weaving the PP woven cloth by the Circular Loom.
The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production, it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc.
Features:
The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production, it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc.
Capability:
1.5-2 ton/ day

M88 Rope making machine

Rotate speed of Principal axis

320r/min

Diameter of rope

? 20- ? 28mm

Auto rope arranging device

Gp40

Twist scope

16-62 twist/ m

Twisting direction

Left & right

Power

18.5kw

Dimension

14.8x2.5x2.1m

Capability

1.5-2.8ton/day

M77 Rope making machin

Rotate speed of Principal axis

350r/min

Diameter of rope

16-22mm

Auto rope arranging device

Gp40

Twist scope

? 16- ? 22 twist/ m

Twisting direction

Left & right

Power

15kw

Dimension

13x2.3x2.1m

Capability

1-2.5ton/day

M66 Rope making machine

Rotate speed of Principal axis

420r/min

Diameter of rope

? 10-?16mm

Auto rope arranging device

Gp30

Twist scope

16-62 twist/ m

Twisting direction

Left & right

Power

7.5kw

Dimension

8.6x2x2.1m

Capability

0.6-1.2ton/day

M55 Rope making machine

Rotate speed of Principal axis

620r/min

Diameter of rope

? 5-?10mm

Auto rope arranging device

Gp30

Twist scope

16-62 twist/ m

Twisting direction

Left & right

Power

3kw

Dimension

5.3x1.9x1.8m

Capability

0.5-0.8ton/day

M44 Rope making machine

Rotate speed of Principal axis

900r/min

Diameter of rope

? 3-?7mm

Twist scope

26-82 twist/ m

Twisting direction

Left & right

Power

5.5kw

Dimension

8.6x2x2.1m

Capability

0.2-0.6ton/day


After saling Rope making machine, if necessary, we will send one or two engineers to set up and commissioning of the Rope making machine until it running in normal state. During the time your workers who will operate the Rope making machine will be trained.
